If you’ve ever marveled at a massive LED video wall and wondered why some displays appear crisper than others, the answer often lies in a term called pixel pitch. Let’s break it down in simple terms.

What Is Pixel Pitch?

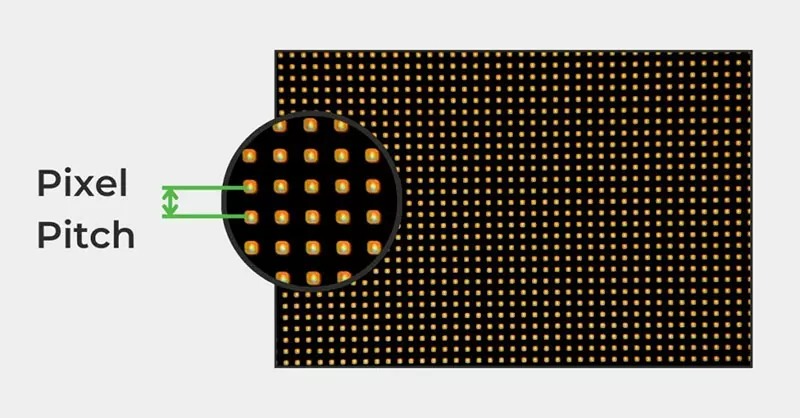

Pixel pitch refers to the distance between the centers of two adjacent pixels on an LED display, measured in millimeters. It’s typically denoted as “P” followed by the measurement—for example, P2.5 indicates a 2.5mm pixel pitch.

Think of pixel pitch as the spacing between tiles on a mosaic. The closer the tiles (or pixels), the more detailed and seamless the image appears.

The smaller the number, the better the image will look. A 2.5mm video wall will have each LED diode twice as close to each other than a 5mm video wall. Which is going to look much better for certain events.

Why Does Pixel Pitch Matter?

The pixel pitch directly affects two critical aspects of a video wall

1. Image Clarity: A smaller pixel pitch means pixels are closer together, resulting in higher resolution and sharper images.
2. Optimal Viewing Distance: Displays with smaller pixel pitches can be viewed from closer distances without noticing individual pixels. Conversely, larger pixel pitches are suitable for viewing from farther away.

For instance, a P2.6 display is ideal for close-up settings where your guests may be within 10-15 feet, while a P5 display suits large venues where viewers are positioned farther from the screen.

Choosing the Right Pixel Pitch

Selecting the appropriate pixel pitch depends on your specific needs and budget:

• Indoor Events: For settings like conferences or retail displays where viewers are close, opt for a smaller pixel pitch (e.g., P1.8 to P2.5) to ensure crisp visuals.
• Outdoor Events: In scenarios where the audience is at a distance further away such as concerts, a larger pixel pitch (e.g., 4.8 or higher) is cost-effective and sufficient for clear imagery.

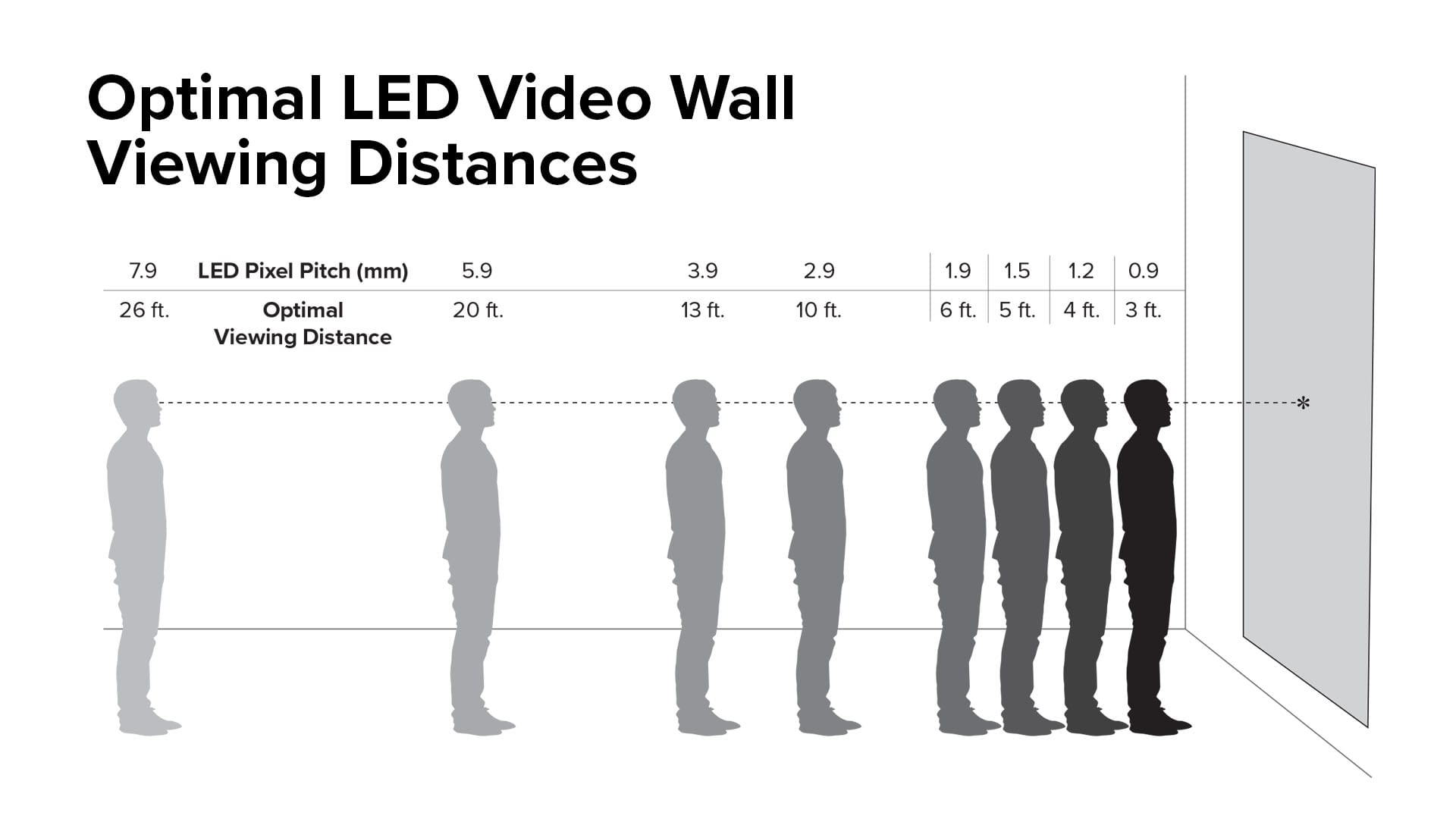

A general rule of thumb is that the optimal viewing distance (in meters) is approximately equal to the pixel pitch number. So, a P4 display is best viewed from about 4 meters away.

Visualizing Pixel Pitch

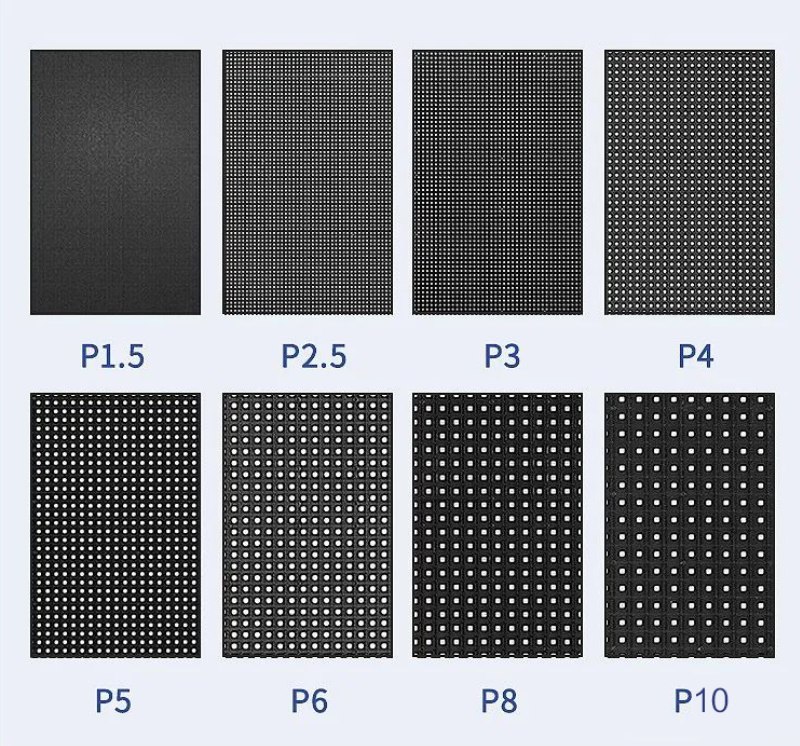

To better understand how pixel pitch affects image quality, consider the following illustration:

This image demonstrates how smaller pixel pitches result in higher pixel density, leading to smoother and more detailed visuals.

Imagine that you were standing 10 feet away from these video wall tiles. You can barely even notice the distance between the diodes on the P1.5, but you can easily see the distance in the P10.

Final Thoughts

Understanding pixel pitch is essential when planning to use a video wall at your next event. By considering the viewing distance and desired image clarity, you can choose a display that delivers the best visual experience for your audience.

If you’re unsure about which pixel pitch suits your needs, give us a call and we can provide tailored recommendations based on your specific application.
